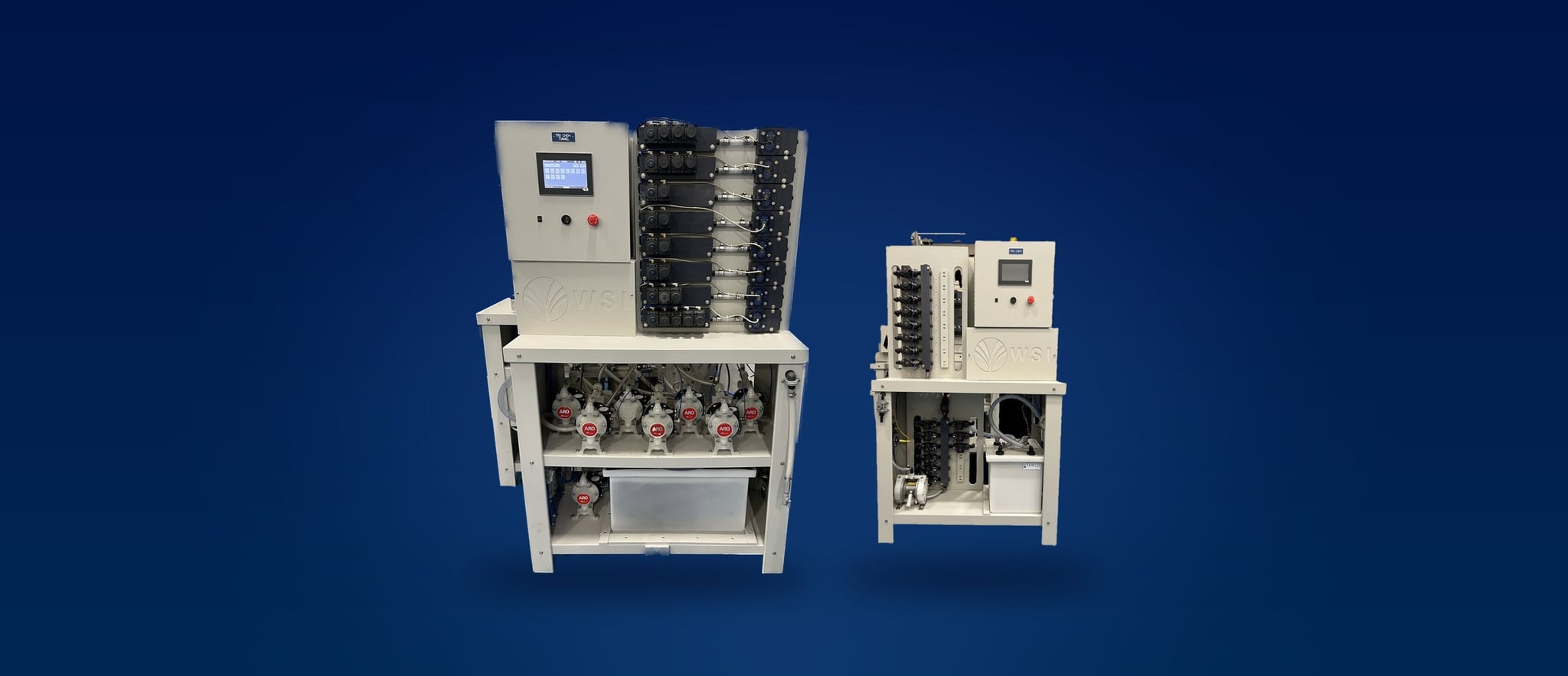

Chemistry only performs when the right amount reaches the right load. A short or missed injection shows up later as rewash. TRUchem is WSI's own chemical delivery system, engineered for industrial laundry and built in two versions: one for tunnel washers and one for conventional washer-extractors.
Both run on B&R PLC industrial automation, both come with a spare parts tote for the plant at install, and both are backed by the WSI team that tunes your wash chemistry.

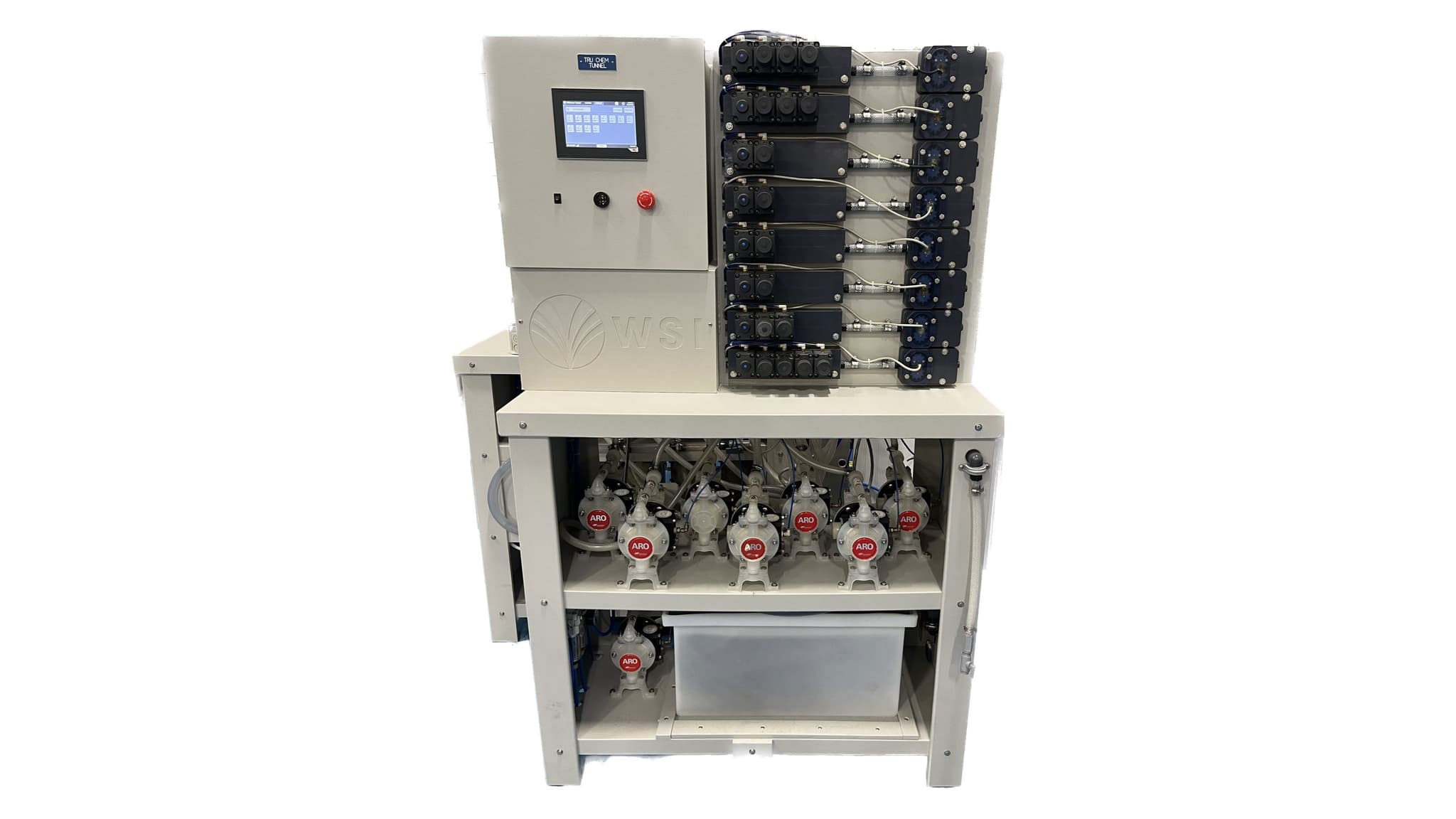

TRUchem for tunnel washers
A tunnel moves goods through compartment after compartment, so delivery has to keep pace with the load. TRUchem Tunnel is a split system. The dispenser takes about the same footprint as the conventional unit and sits next to the tunnel, with a separate, larger pump stand. That split is what gives the tunnel faster delivery. The tunnel stand is 44" x 17" and needs a 44" x 24" footprint with room for hoses, cables, and working clearance. The system tracks up to 24 compartments, scales with a modular design that grows to eight dosing modules, and alarms and holds the tunnel if a delivery fails.
- B&R PLC industrial automation control
- Split dispenser and pump stand for faster delivery
- 44" x 17" stand (44" x 24" footprint with clearance)
- Integrated tracking for up to 24 compartments
- Modular design with up to 8 dosing modules
- Capacity for up to 16 chemicals
- Binary or MTP operation
- Alarms and holds the tunnel on a failed delivery
- Built-in troubleshooting selections
- Spare parts tote for the plant at install

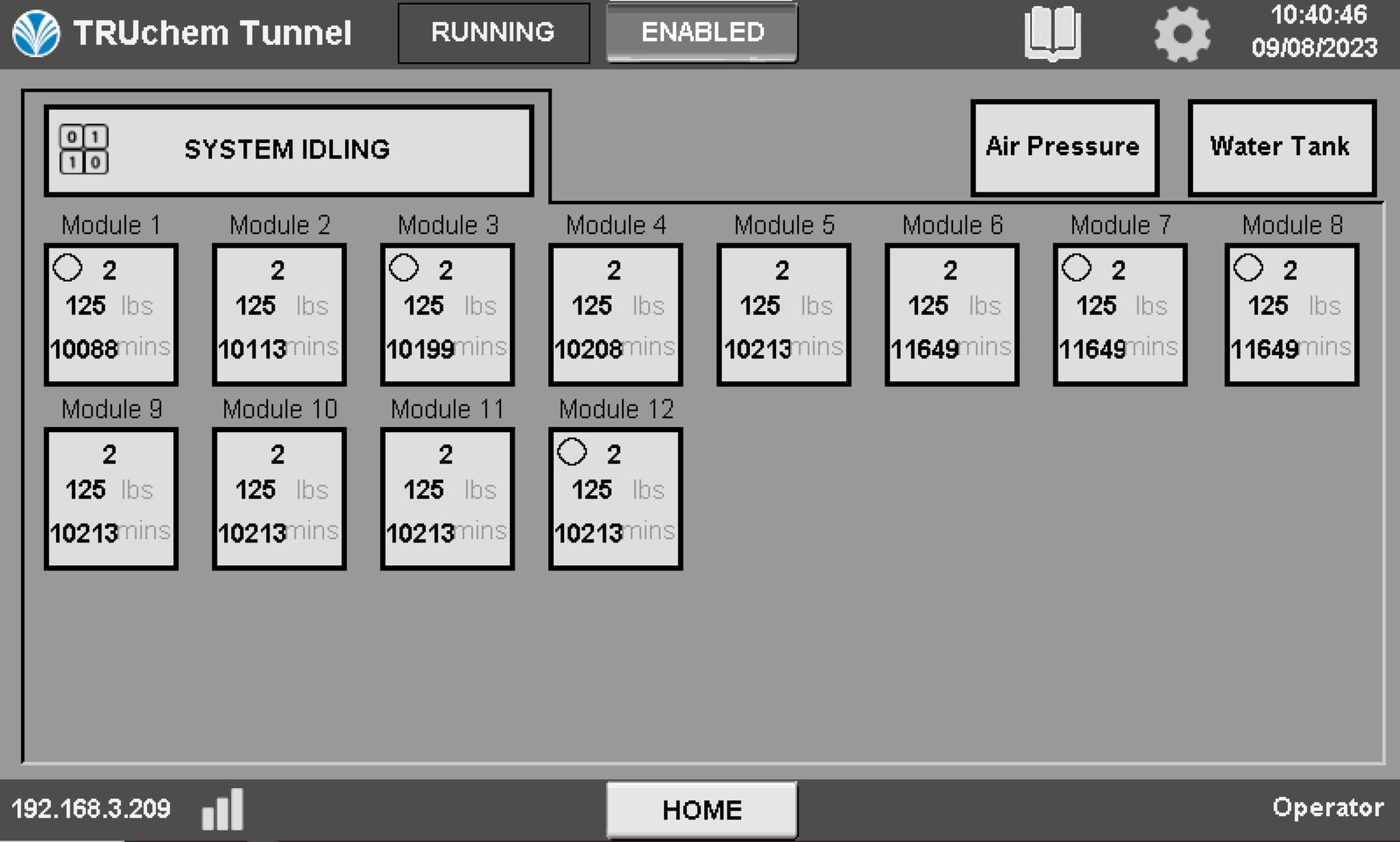

The operator screen displays the status of every module on one view, with air pressure and water tank checks a tap away.

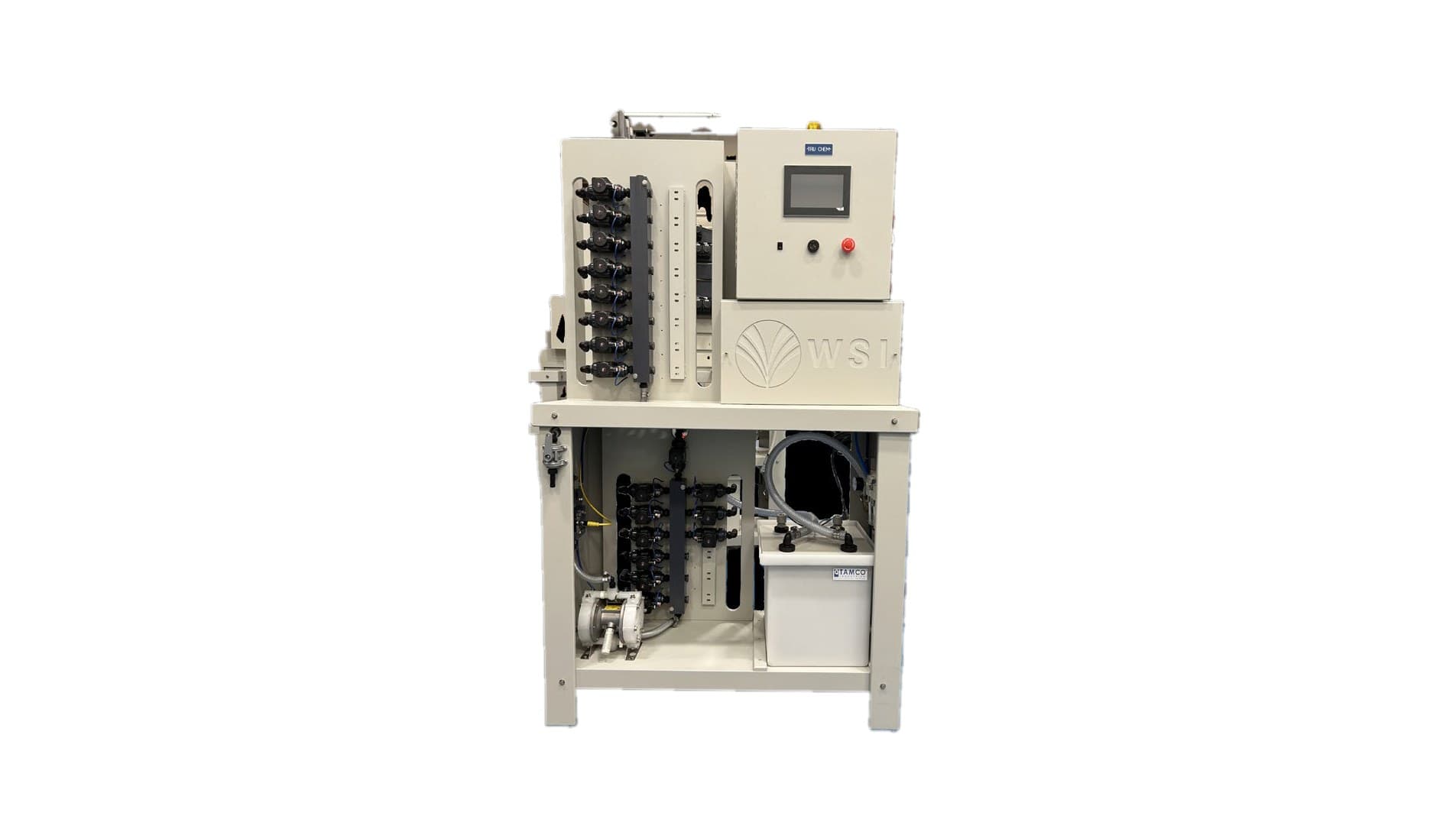

TRUchem for conventional washer-extractors
In a conventional wash aisle, one delivery system often serves many machines. TRUchem Conventional services up to 16 washers from a 42" x 17" stand, and it checks every formula before the load moves on. Plan for a 42" x 24" footprint to leave room for hoses, cables, and working clearance. Two TRUchem units fit in the space of one leading competitor's system. If a formula ends without every programmed chemical request, operators are alerted before the goods leave the washer.
- B&R PLC industrial automation control
- Touchscreen operation
- Integrated technical troubleshooting
- Services up to 16 washers
- Fully redundant
- Formula validation for every programmed chemical request
- Quick-service union valves rated to more than 5 million cycles
- Off-the-shelf components
- Manual delivery options
- 42" x 17" stand (42" x 24" footprint with clearance)
- Spare parts tote for the plant at install
Backed by WSI
Precise delivery is what makes a wash program repeatable from one shift to the next. WSI brings decades of industrial laundry experience to every TRUchem install, and the same field team that sets up the system supports it on your floor. TRUchem systems are field-tested and in use at laundries across North America.
To see whether TRUchem fits your tunnel or wash aisle, talk to your WSI representative or contact us.
